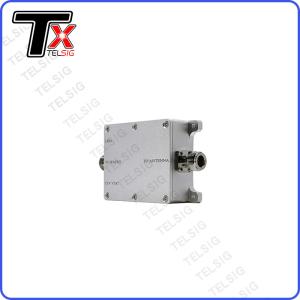

5.8GHz 5W Signal Booster SMA
Applications
IEEE 802.11a/n/ac WLAN System
Smart Home Systems Signal Extender
Wireless Cameras Signal Extender
Drone Signal Extender
Features
100X the power, improving the link quality and coverage of certified WLAN devices
3.0dB ultra-low noise
Wide 6V to 18V operating input range
Working with certified IEEE 802.11a/n/ac Wireless LAN devices
Simply plug and play, no software is required
Attentions
1 12V /1.5A power supply.
2 Heat dissipation is recommended, such as adding heat sink or radiator fan.
3 Antenna should be screwed first, then plug the power adapter, finally connect the device.
4The output could reach 37dBm, when input power is 17dBm or 18dBm (default gain is 20dB)
| Parameters |
| Number |
Items |
Specifications |
| 1 |
Frequency Range |
5150-5850MHz |
| 2 |
Operating Voltage |
6-18V |
| 3 |
Receiving Gain |
15dB±1 |
| 4 |
Transmission Gain: |
20dB±1 |
| 5 |
Max Output Power(P1dB) |
37dBm(5W) |
| 6 |
Input Trigger Power |
Min:3dBm Max:18dBm |
| 7 |
EVM |
3%@29dBm 802.11a 54Mbps OFDM 64QAM BW 20MHz |
| 8 |
Noise Figure |
＜3.0dB |
| 9 |
Current Supply |
610mA@Pout 29dBm 12V |
| 10 |
TX/RX Switch Time Delay |
＜1 us |
| 11 |
LED Indicator |
Transmitter: Red; Receiver: Green |
| 12 |
Operating Temperature |
-30℃～+70℃ |
| 13 |
Storage Temperature |
-40℃～+150℃ |
| 14 |
Operating Humidity |
Up to 95% rel. humidity |
| 15 |
RF Connector |
Input: SMA-K; Output: RP-SMA-K |
| 16 |
Power Socket |
5.5*2.1mm |
| 17 |
Shell Size |
98.5*66.0*28.0(mm) |
| 18 |
Shell Material |
Aluminum |
| 19 |
Net Weight |
0.27Kg |
